Overview

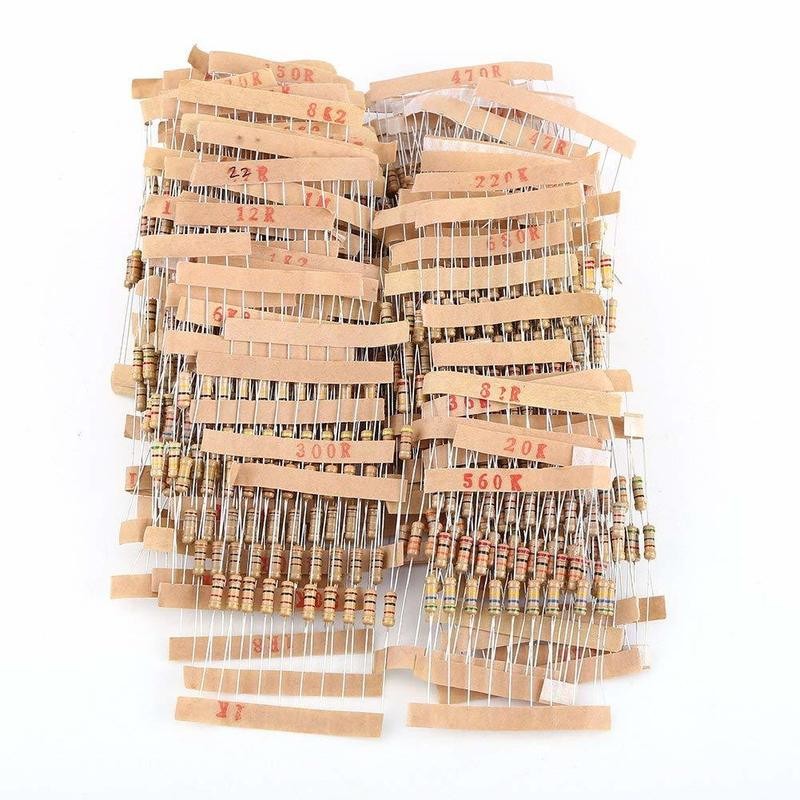

Carbon film resistors are widely used in electronic circuits due to their stability and low noise production. These resistors consist of a thin layer of carbon deposited on a ceramic substrate, providing a range of resistance values suitable for a wide array of applications. The resistive film's thickness and the carbon's purity determine the resistor's final resistance value.

Advantages

• Stability: Carbon film resistors maintain stable resistance under normal conditions, making them suitable for consistent voltage and current control.
• Low Noise: Compared to other resistor types, carbon film resistors produce minimal electrical noise, which is beneficial in sensitive circuits.
• Affordability: Due to their simple construction, these resistors are cost-effective and readily available.

Usage Instructions

To use a carbon film resistor effectively, choose a resistor with an appropriate resistance value and wattage rating for the circuit's requirements. Ensure the resistor is compatible with the voltage and current levels in the circuit, and avoid exceeding its maximum power rating.

Cautions

While carbon film resistors are reliable, they should not be subjected to excessive heat or moisture, which can alter their resistance values over time. Additionally, they are best suited for low to medium power applications; exceeding their wattage can lead to overheating or resistor failure.
