Name: UVC 265 ~ 285nm 3535SMD LED Chip
SKU: 02632
Price: 75.0 THB
Availability: InStock

This is your starter site, a single page online storefront. All of the images and text on this page can be changed to personalize the site for brand and to communicate your unique story to your customers.

UVC 265 ~ 285nm 3535SMD LED Chip

SKU 02632

฿75.00

Have questions?

In stock

Quantity:

Product Details

Features :
Size : 3.5x3.5x1.48 mm
View Angle : 120°
Materials :InGaN
Operating temperature : -40 ~ +80 C°
Soldering temperature : Max 3 seconds at 260 C°
Applications : disinfection virus / germs
Resin mold : AIN
Reverse voltage : 5V
Pulse forward current : 60mA (Duty 1/10 . Pulse width 0.1mS)

Electrical-Optical Characteristic
Room ambient temperature : 25 C°

UVC : 265 ~ 285nm

Parameter	Symbol	Condition	Value			Unit
Parameter	Symbol	Condition	Minimum	Typical	Maximum	Unit
Forward Voltage	VF	IF=20mA	5	~	7	V
Luminous Flux	⦶	20 mA	2	2.5	3	mW
Luminous Flux	⦶	50 mA	6	6.5	7	mW
Wavelength UVC	WD	IF=50 mA	265	~	285	nm

UVA : 395 ~ 410nm

Parameter	Symbol	Condition	Value			Unit
Parameter	Symbol	Condition	Minimum	Typical	Maximum	Unit
Forward Voltage	VF	IF=50mA	3	~	3.4	V
Luminous Flux	⦶	50 mA	3	3.5	4	LM
Luminous Flux	⦶	100 mA	6	6.5	7	LM
Wavelength UVA	WD	IF=50 mA	395	~	410	nm
Thermal Resistance	Rthj-s	IF=1000 mA	-	-	0.6	°C/W
Antistatic Ability	ESD	IF=1000 mA	8000V

Absolute Maximum Ratings = 25 C°±5%

Item	Symbol	Absolute Maximum Rating	Unit
Pulse Forward Current	IF ( UVC)	70	mA
Pulse Forward Current	IF ( UVA)	150	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	0.3	W
Operating Temperature	Topr	-40 ~ +80	C°
Storage Temperature	Tstf	-40 ~ +45	C°
Soldering Temperature	Tsld	Reflow Soldering : 260 C°	For max 3 sec

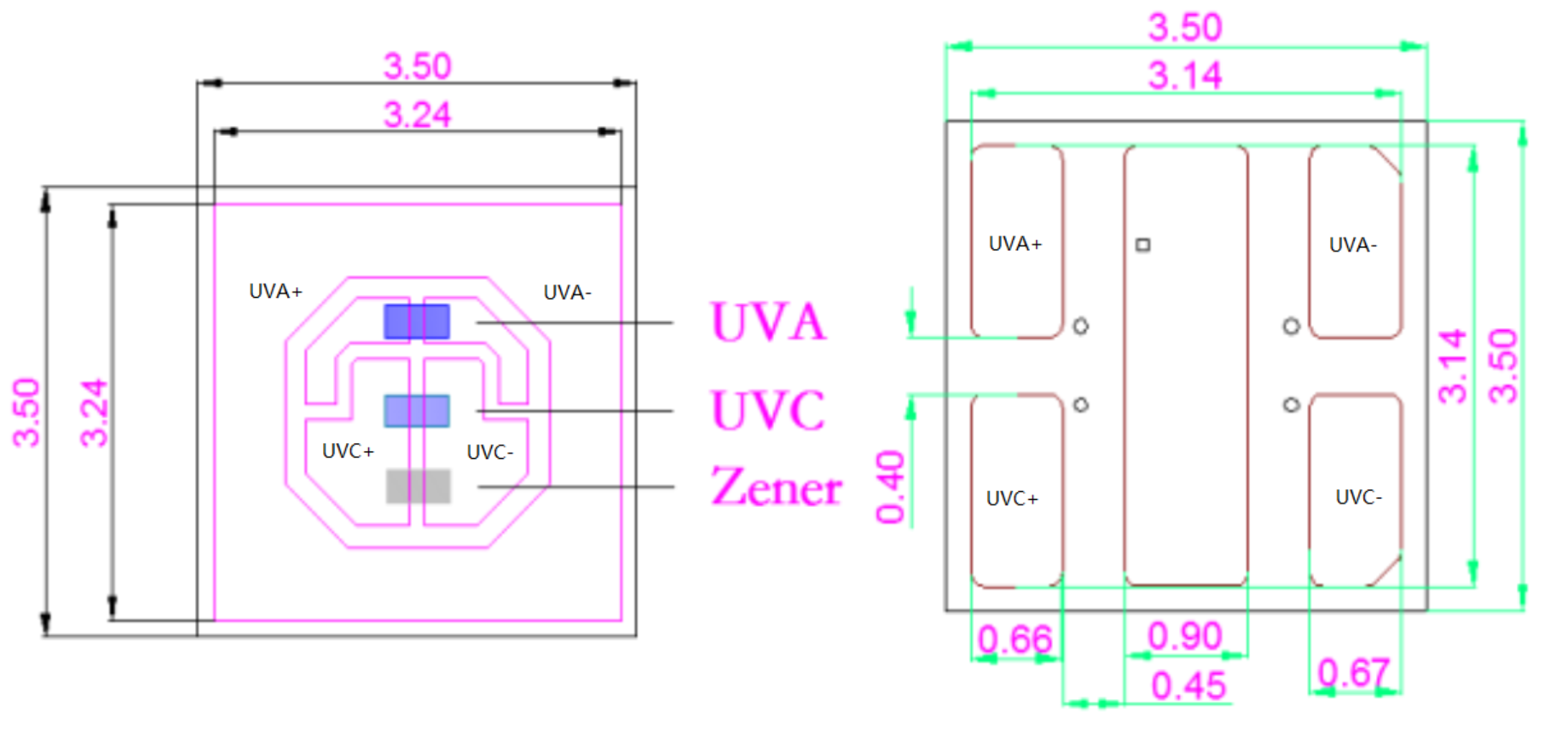

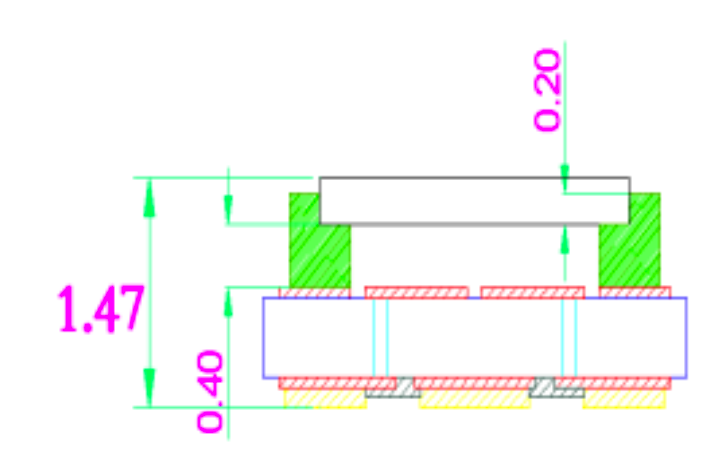

Outline Dimensions
